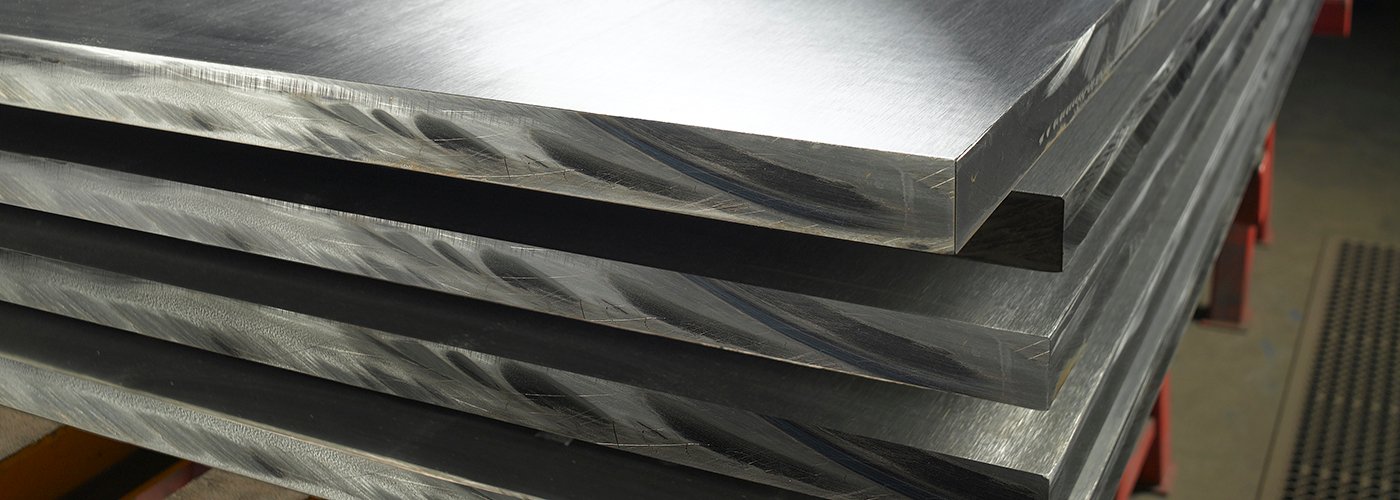

ATI Plate Specifications
| Nickel Based | |
|---|---|
| Product | UNS Number |
| ATI 22™ | N06022 |
| 718Plus® | N07818 |
| ATI 59™ | N06059 |
| ATI 80 A™ | N07080 |
| ATI 75™ | N06075 |
| ATI 201™ | N02201 |
| ATI 200™ | N02200 |
| ATI 276™ | N10276 |
| ATI 520™ | N07520 |
| ATI 400™ | N04400 |
| ATI 601™ | N06601 |
| ATI 600™ | N06600 |
| ATI 617™ | N06617 |
| ATI 625HP™ | N06626 |
| ATI 718-HS™ / ATI 718-DA™ | N07718 |
| ATI 6230™ | N06230 |
| ATI 690™ | N06690 |
| ATI 625™ | N06625 |
| ATI 706™ | N09706 |
| ATI 718-OP™ | N07718 |
| ATI 720™ | N07720 |
| ATI 718™ | N07718 |
| ATI 901™ | N09901 |
| ATI 825™ | N08825 |
| ATI 925™ | N09925 |
| ATI A286™ | S66286 |
| ATI 10242™ Alloy | N10242 |
| ATI C-263™ | N07263 |
| ATI® Astroloy | N13017 (Based on AMS 5846) |
| ATI H-N™ | N10003 |
| ATI HB-2™ | N10665 |
| ATI HX™ | N06002 |
| ATI H-W™ | N10004 |
| ATI X-751™ | N07751 |
| ATI M-252™ | N07252 |
| ATI K-500™ | N05500 |
| ATI® Rene 41 | N07041 |
| ATI N-90™ | N07090 |
| ATI® Waspaloy | N07001 |
| ATI W-722™ | N07722 |
| ATI X-750™ | N07750 |
| Cobalt Based | |
|---|---|
| Product | UNS Number |
| TJA-1537® | R31537 & R31538 |
| ATI 188™ | R30188 |
| ATI 35N™ | R30035 |
| ATI L-605™ | R30605 |
| Special Purpose | |
|---|---|
| Product | UNS Number |
| Moly Permalloy | N14080 |
| ATI 42™ | K94100 |
| ATI 36™ | K93600 or K93603 |
| ATI 4750™ | K94800 or K95000 |
| Element | Minimum (weight %) | Maximum (weight %) | Typical (weight %) |
|---|---|---|---|
| Cr | 20.0 | 23.0 | |
| Mo | 8.0 | 10.0 | |
| Fe | 5.0 | ||
| Cb | 3.15 | 4.15 | |
| Cb+Ta | 3.15 | 4.15 | |
| Si | 0.50 | ||
| Mn | 0.50 | ||
| Al | 0.40 | ||
| Ti | 0.40 | ||
| C | 0.10 | ||
| P | 0.015 | ||
| S | 0.015 | ||
| Ni | 58.0 |
| Tensile Strength | Elongation | Yield Strength | ||
|---|---|---|---|---|
| ksi | MPa | % | ksi | MPa |
| 100 min | 690 min | 40% min | 41 min | 283 min |
| Density (lb/in³) | Density (g/cm³) |
|---|---|
| 0.321 | 8.88 |
